SPECIFICATIONS

Application: Server,Workstation

Back I/O Ports: 1x RJ45

Battery Included: No

Brand Name: wafu

Chipset: AMD

Chipset Manufacturer: AMD

Form Factor: ATX

High-concerned chemical: None

Max LAN Speed: 2500Mbps

Maximum Ram Capacity: 512GB

Number Of Memory Slots: 8

Number of M.2: 3

Number of PCI: 5

Number of PCIe x 16: 4

Number of PCIe x 8: 1

Onboard LAN: 3x RJ45

Origin: Mainland China

PCI – E standards: PCI-E 4.0

Package: Yes

Processor compatibility: AMD Others

Quality Certification: ce,FCC

RAID Supported: Yes

SATA RAID: 0,1,10

Socket Type: AM4

Special Features: NONE

Storage Interface Type: SATA,M.2 (NVMe)

Support Memory Type: DDR4

Support USB Type: USB 2.0,USB 3.0

Supports M.2 SSD: 2242,2280,2260,22110

Usage Scenario: Enthusiast & Overclocking,Audio & Video,Household,Office,Design,Video Production,Industrial Computer,Workstation,Server,Scientific Computing,3-D Modeling,Video Rendering,MaxCompute,others

With CPU: No

Please note that importantly: In this product link, there are 2 parts. The motherboard part is the JGINYUE EPYC H13 Motherboard , which includes  8 options CPU. Please purchase carefully when placing an order. If you have any questions, please consult us and we will provide assistance

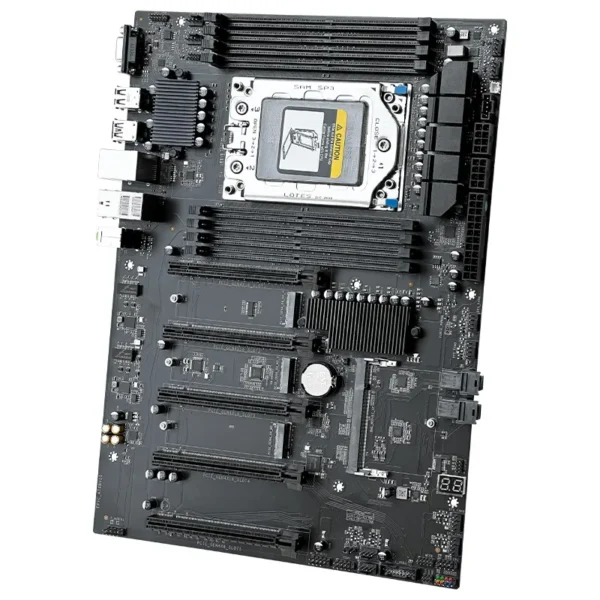

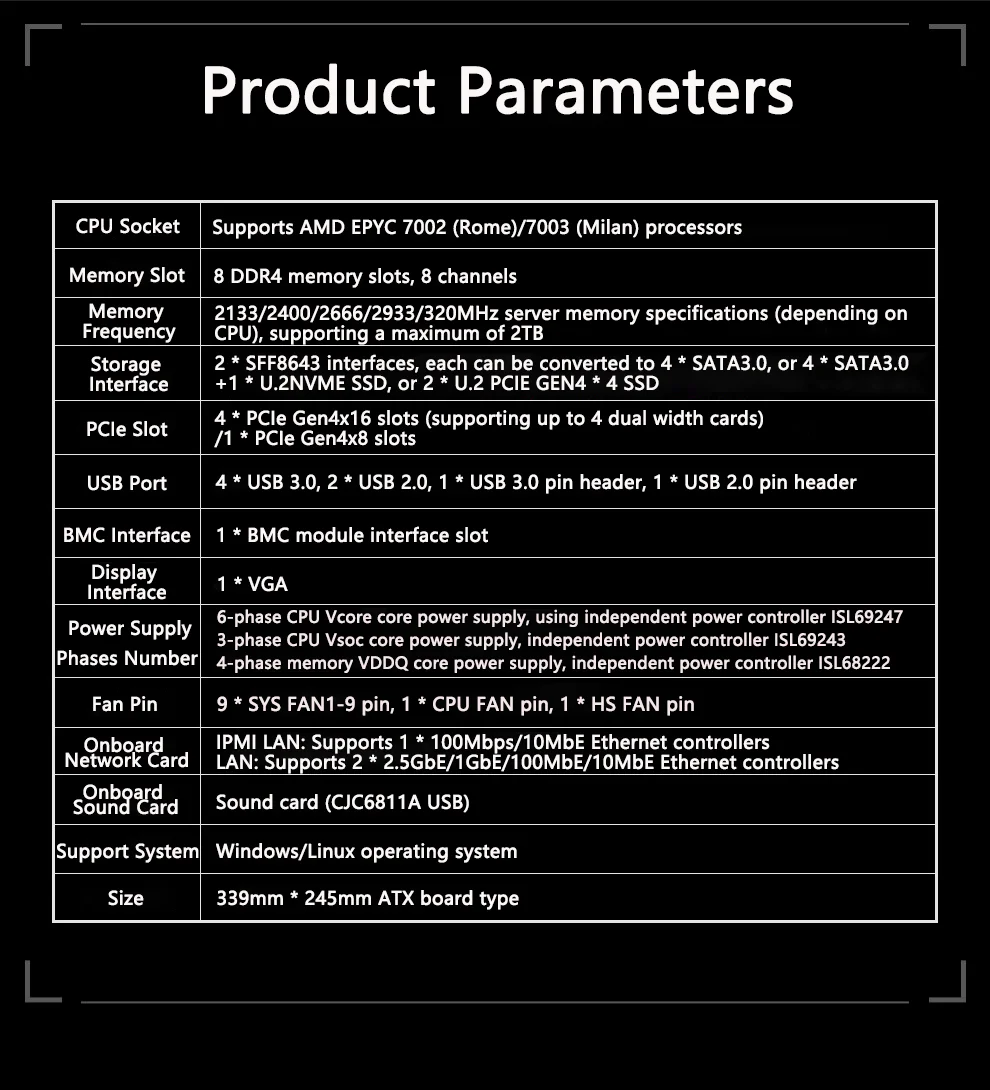

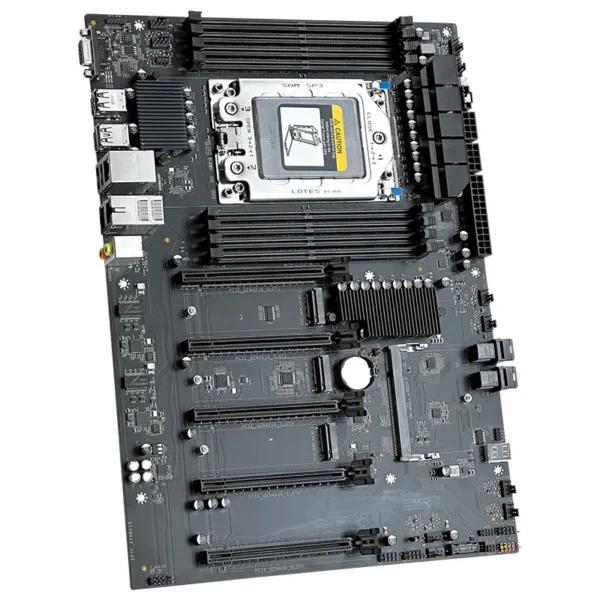

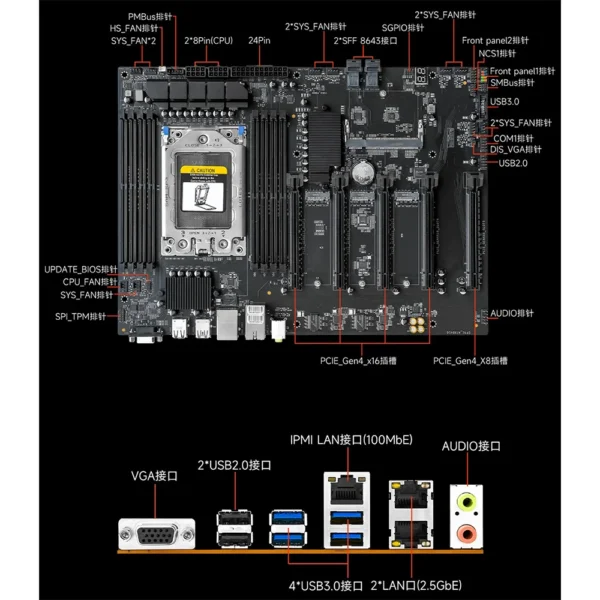

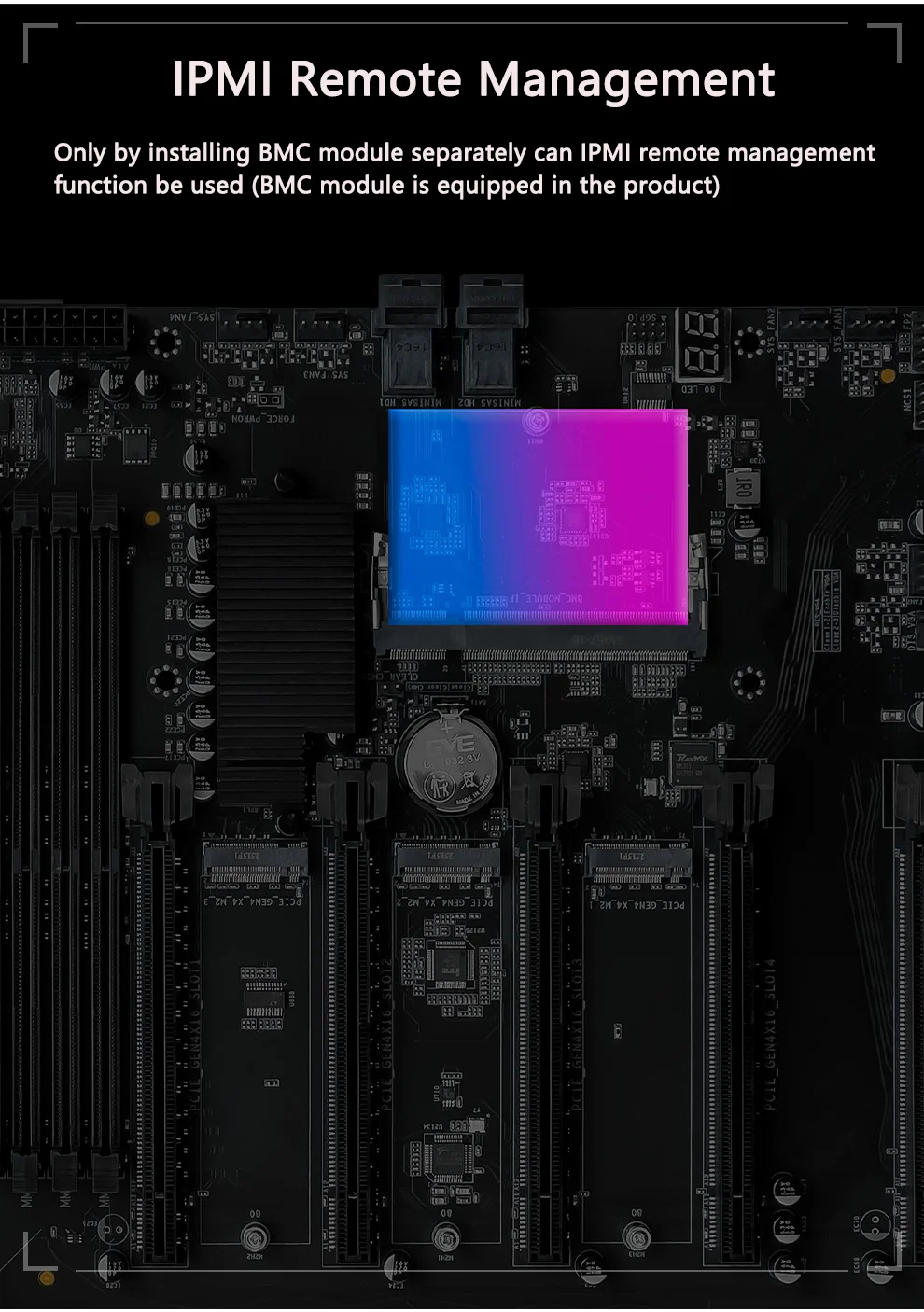

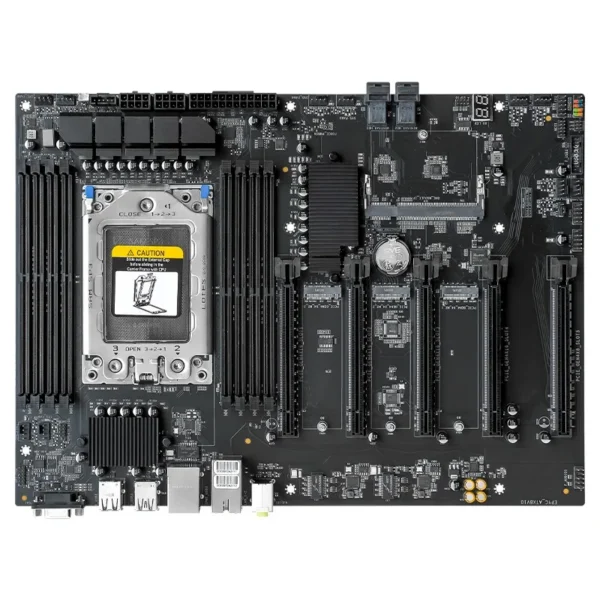

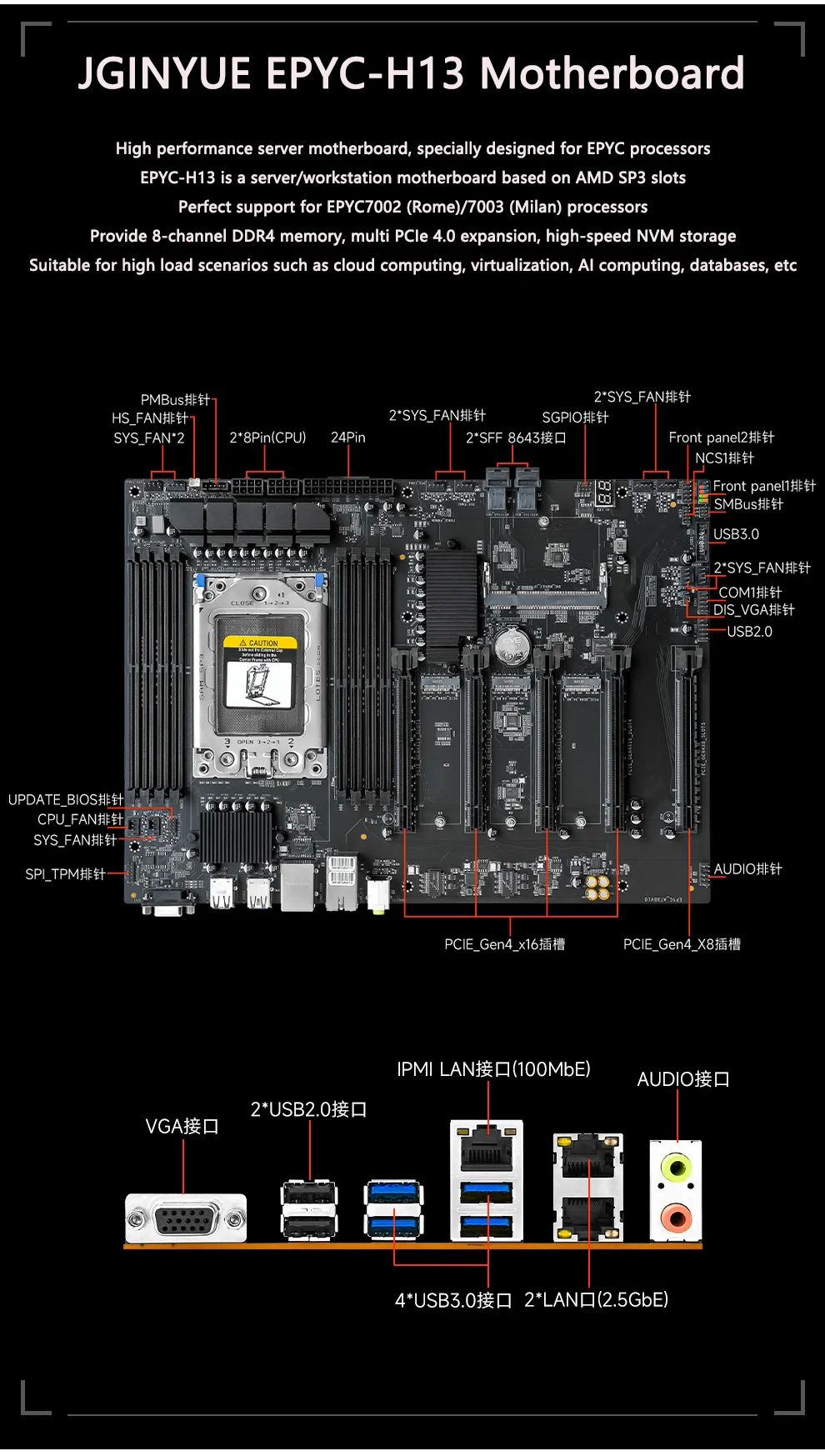

Model：JGINYUE H13 Motherboard （With BMC module）

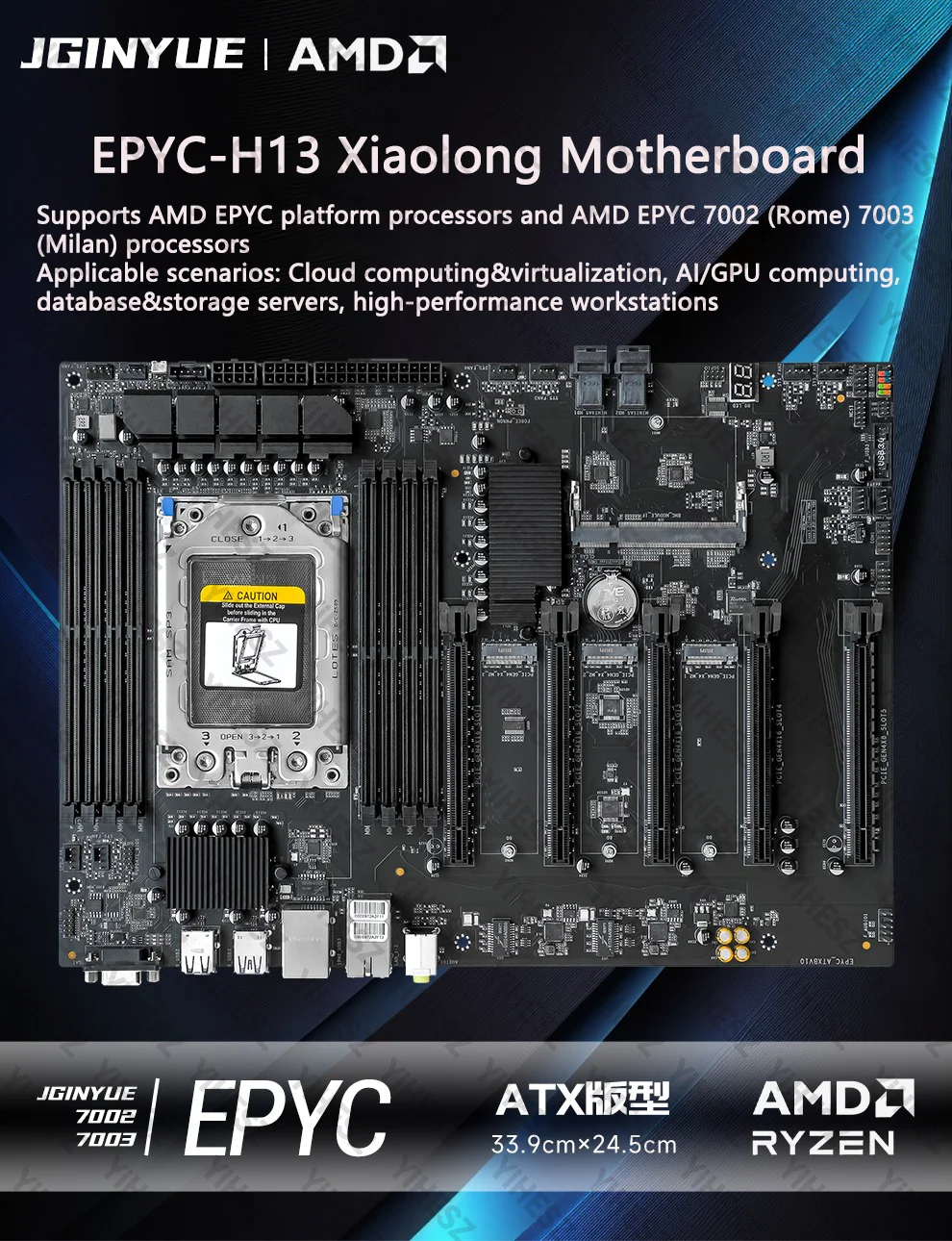

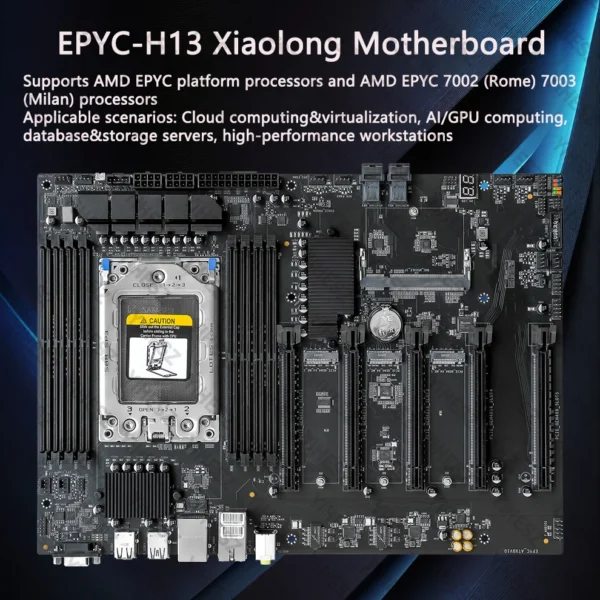

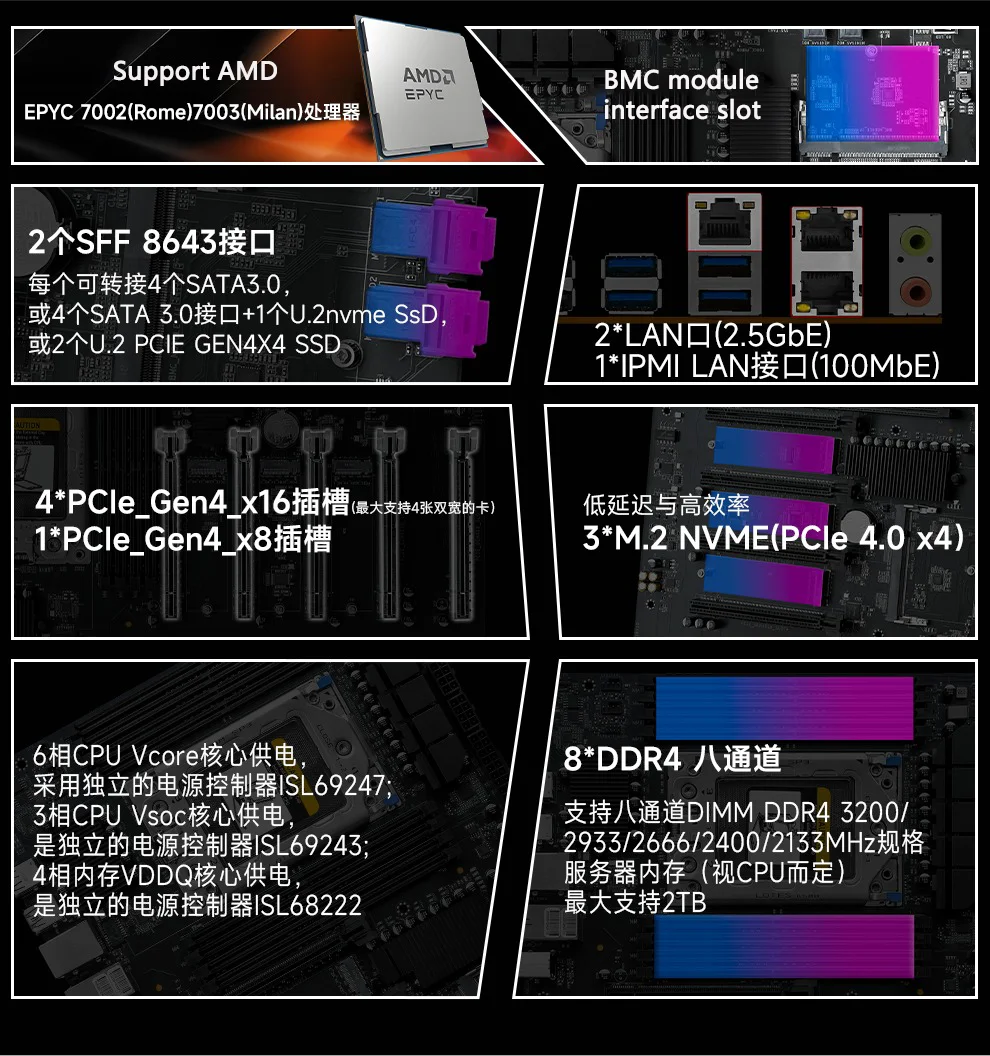

CPU Socket：AMD EPYC Platform Processor Supports AMD EPYC 7002 (Rome) 7003 (Milan) processor
Memory slot：8 x DDR4 memory slot

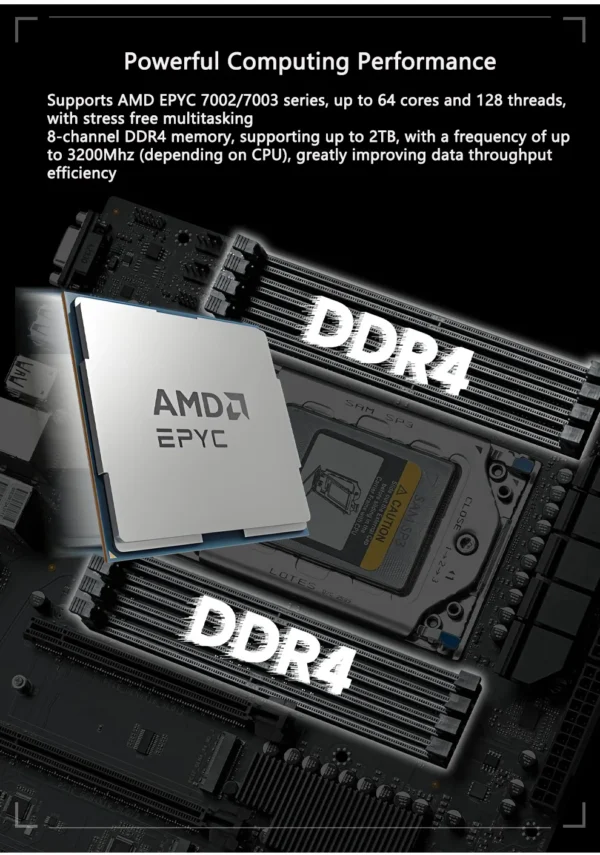

Memory standard：Support 8 channel DDR4 3200/2933/2666/2400/2133MHz Memory(Depends on CPU)，Max support 2T

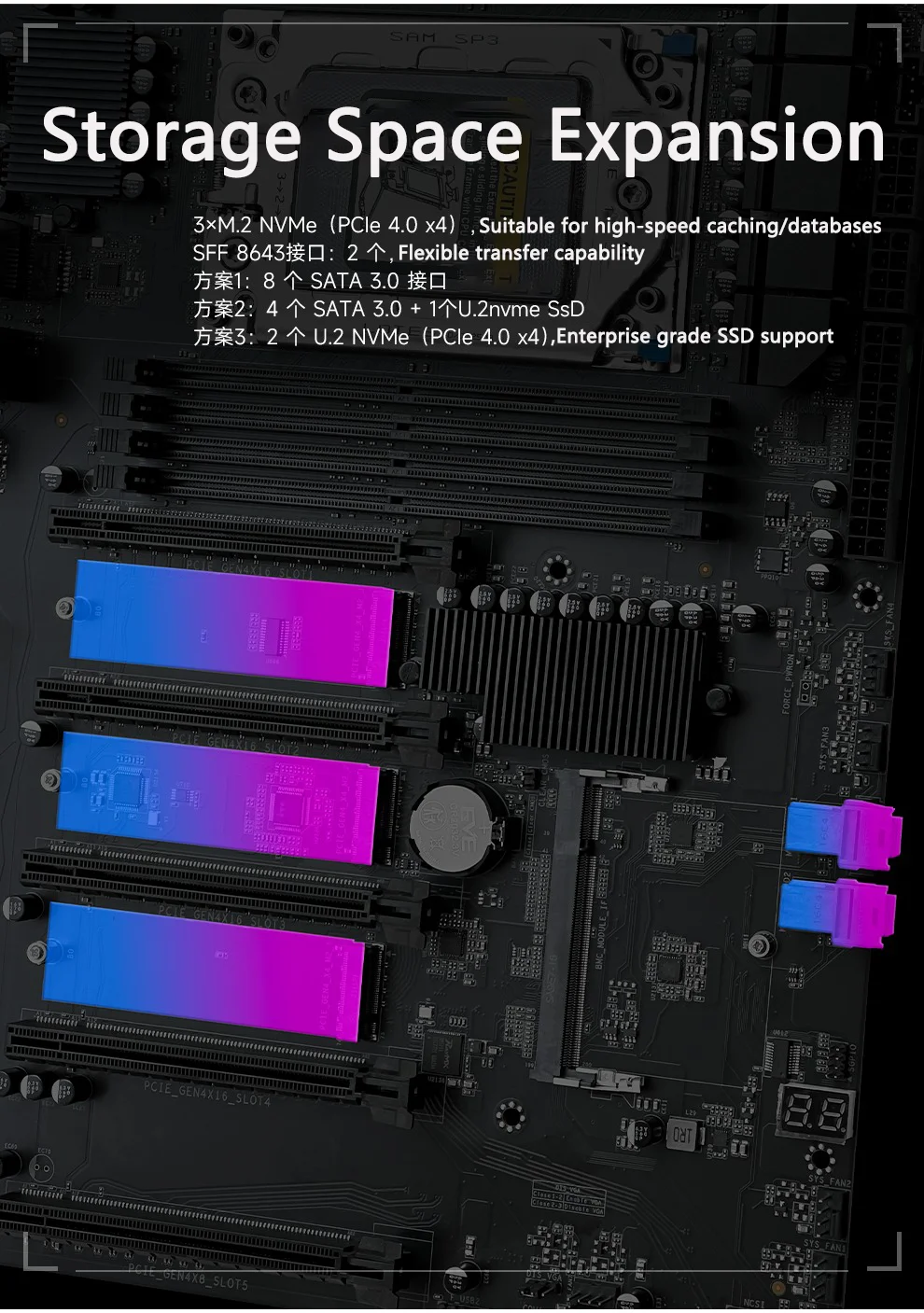

Storage interface：2*SFF8643 interfaces，each can be converted to 4*sata3.0，or 4*sata3.0+1*U.2nvme SSD，or 2*U.2 pcie gen4*4 SSD

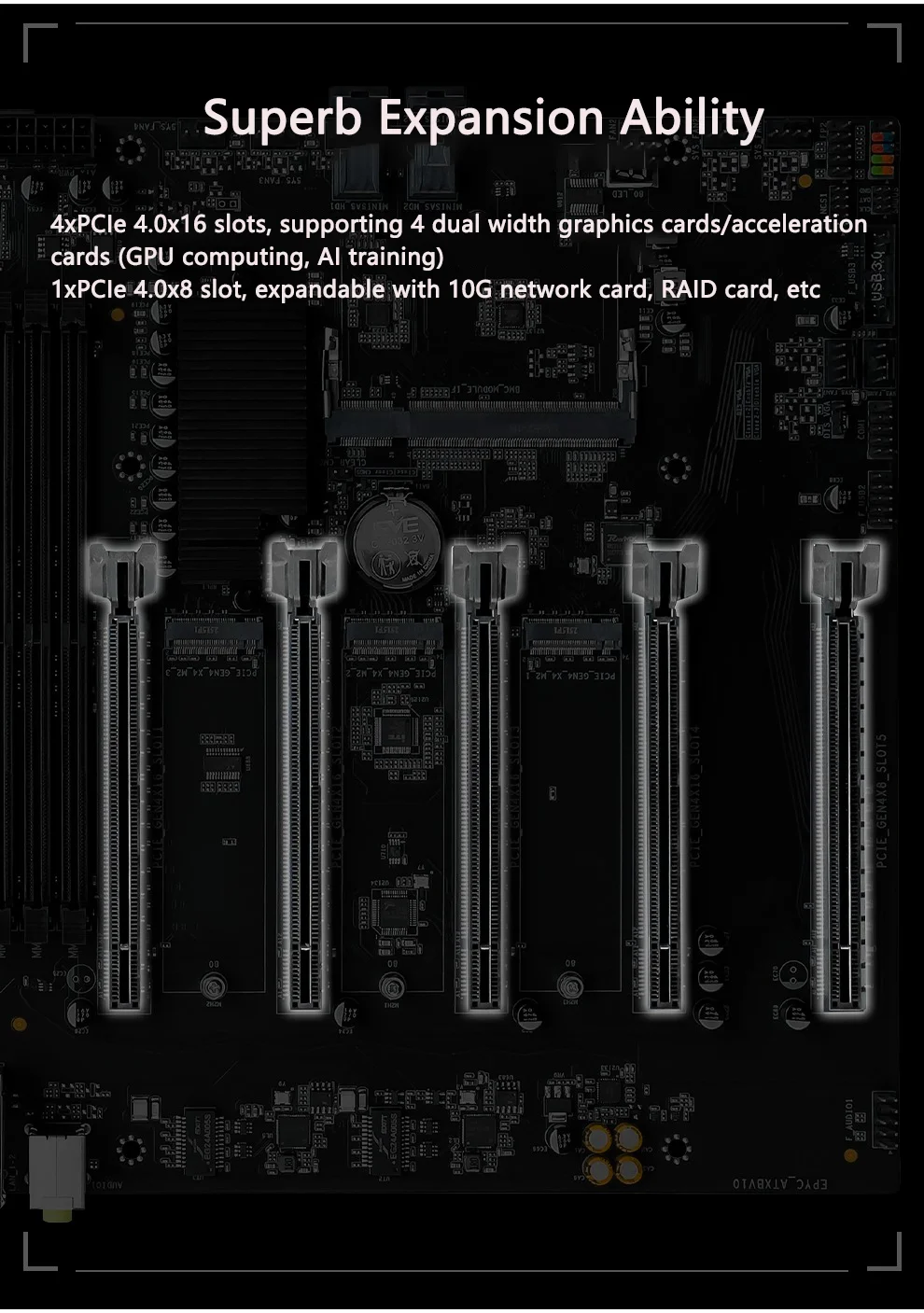

Expansion Slots：4xPCI Express 4.0 x16/1xPCI Express 4.0 x8

NOTE:

If you need to learn more information, please contact us

Buying instructions:
1. Due to manual measurement, please allow a difference of 1-3mm.
2. Due to differences in display and lighting,  there may be slight differences in images and products. Thank you for your understanding.
3. For tax issues,  some countries need to bear their own taxes to ensure whether their country needs customs clearance and has the ability to do so
4. The battery in the motherboard photo will be removed before shipment
5. Please carefully determine the product combination you need, I can only send the products according to the options you ordered
