SPECIFICATIONS
Air Volume: 62.4
Bearing: Fluid Bearing
Blade Quantity: 7
Brand Name: Jonsbo
Certification: CE,RoHS
Choice: yes
Fan Life: 100000 hrs
Fan Size: 12cm
Fan Speed: 700 – 2400
High-concerned chemical: None
Lines: 4 LINES

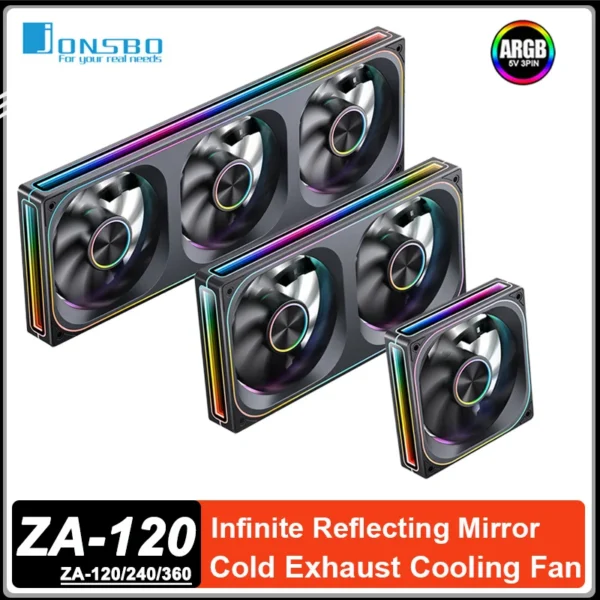

Model Number: ZA-120/240/360
Noise: 25dBA
Origin: Mainland China
Package: Yes
Power (W): 2.64
Power Interface: 4PIN,5v-3pin ARGB

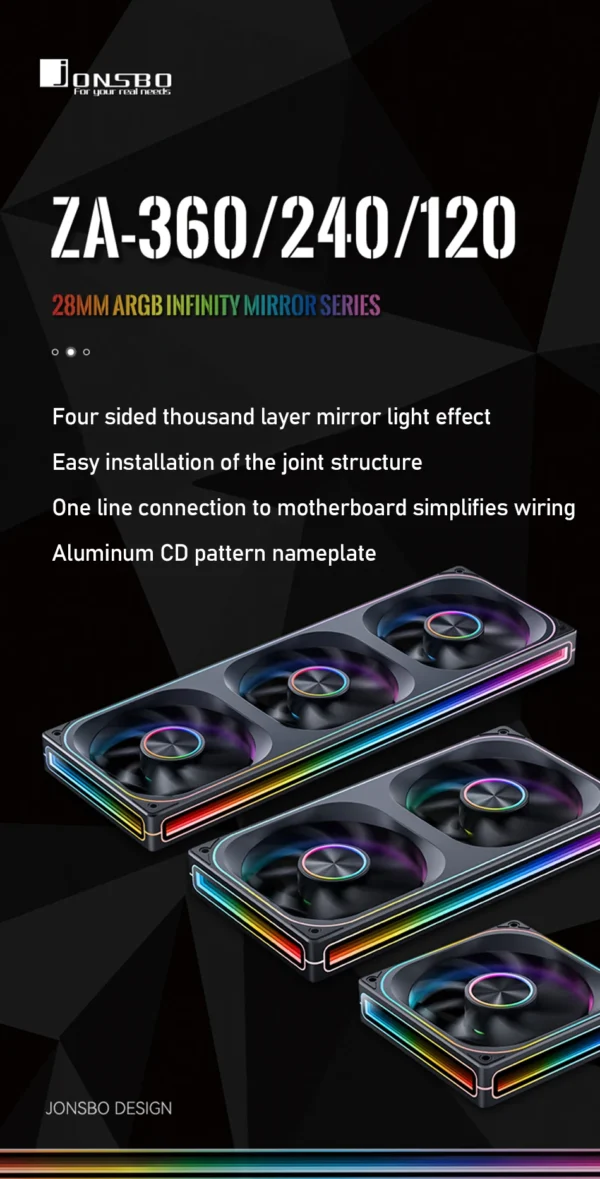

Series: ZA-120/240/360
Used For: Case,Radiator
Voltage: 12V

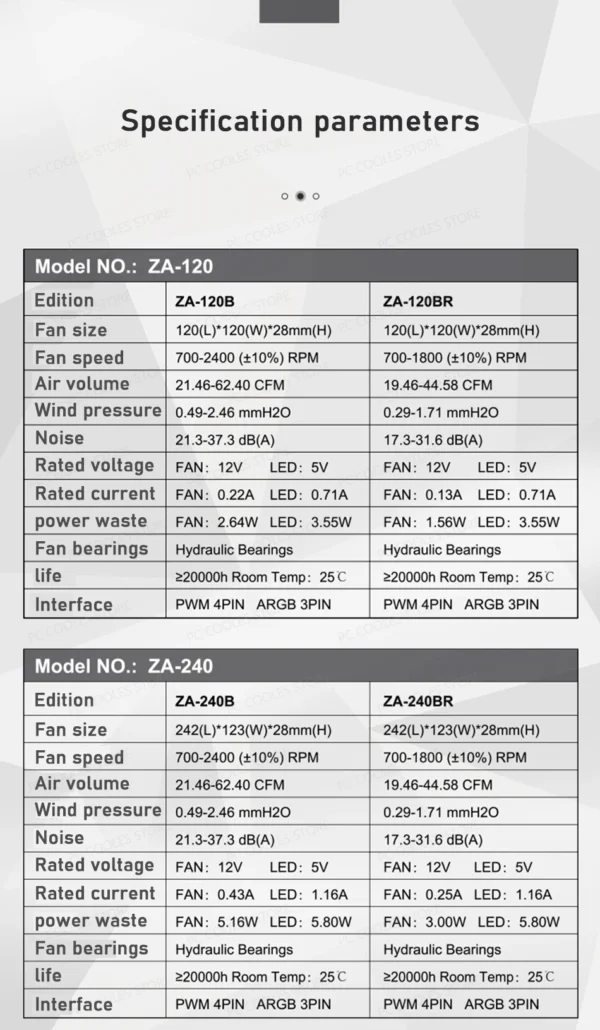

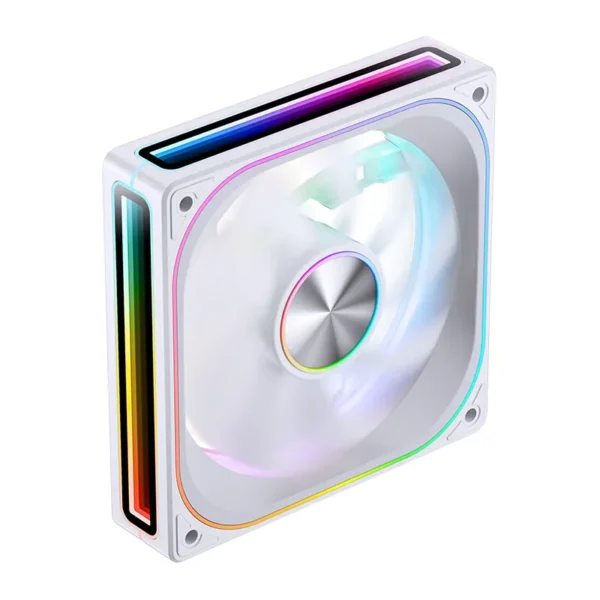

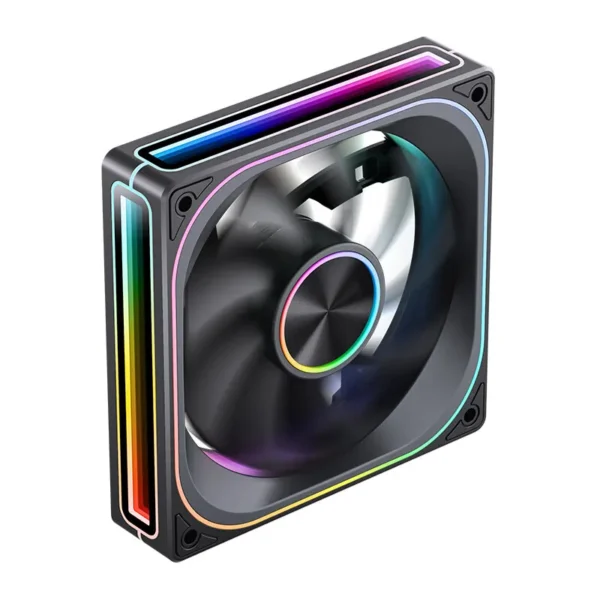

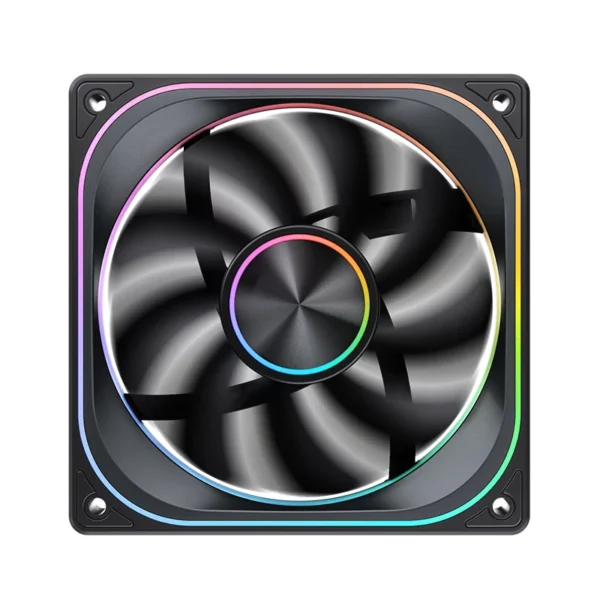

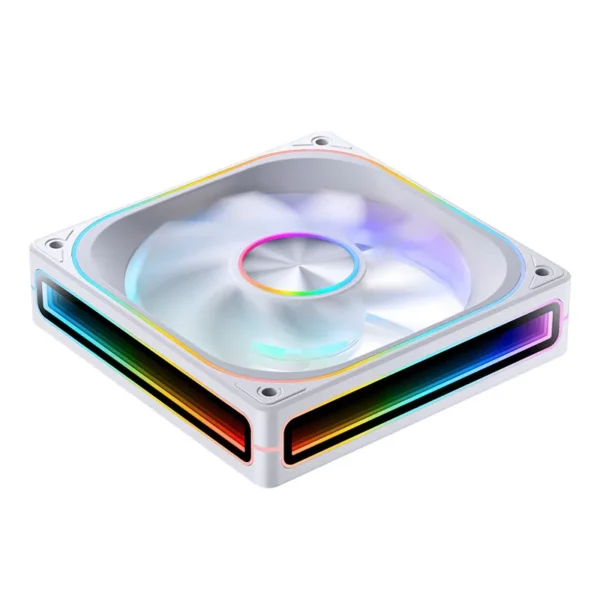

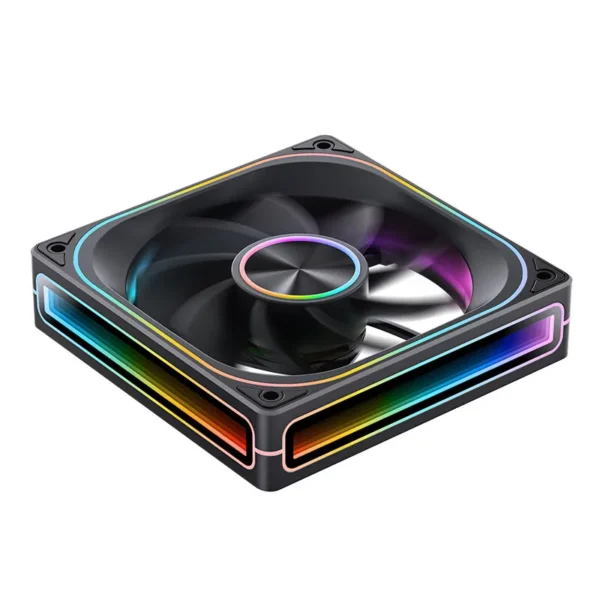

ZA-120

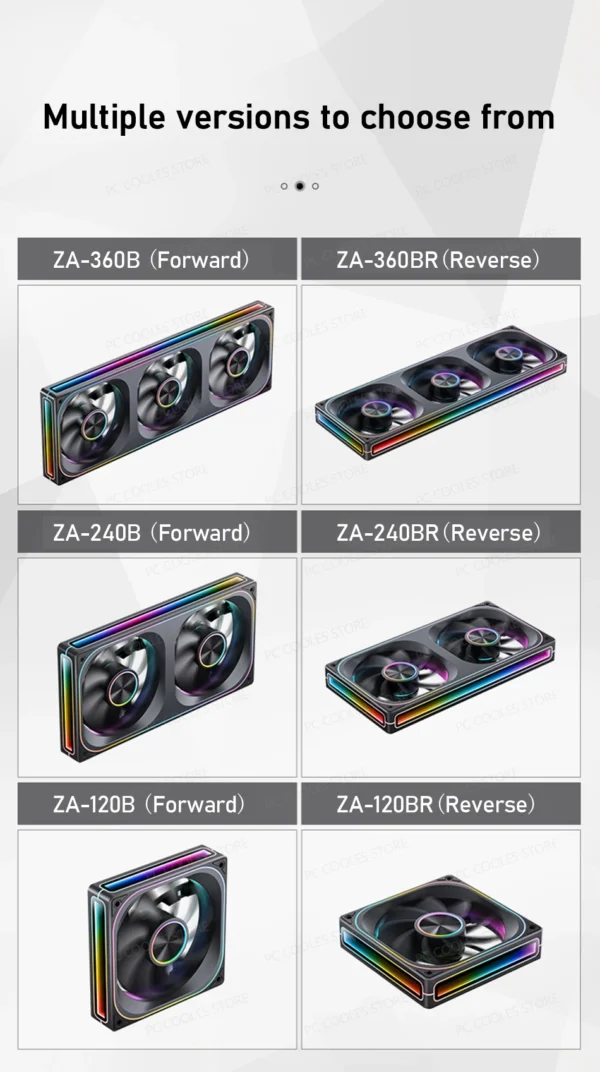

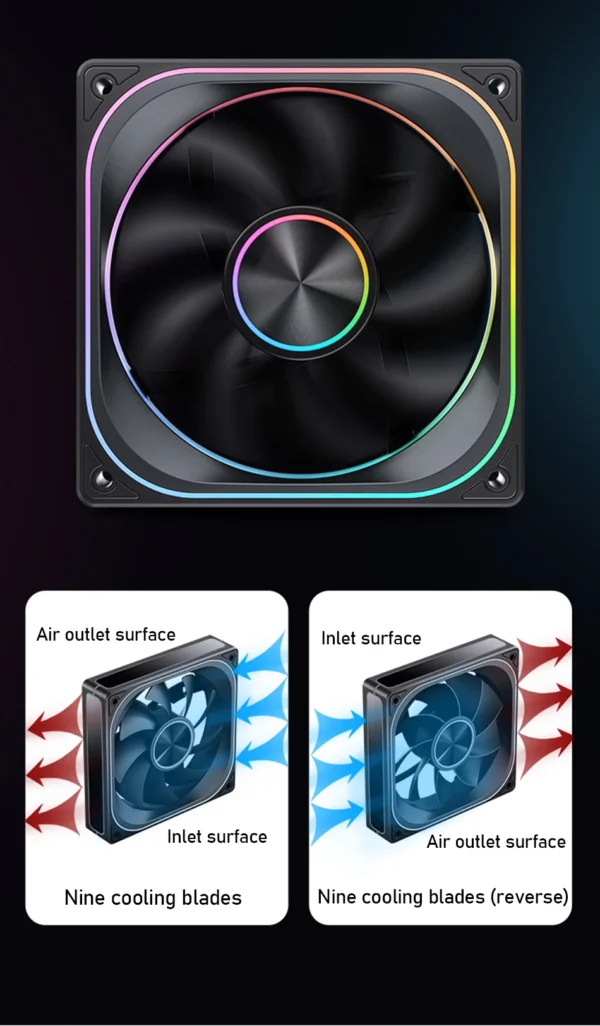

Model: ZA-120W Black and White/Forward and Reverse
Fan size: 120mm (L) * 120mm (W) * 28mm (H)
Speed: 700-2400rpm (± 10%)

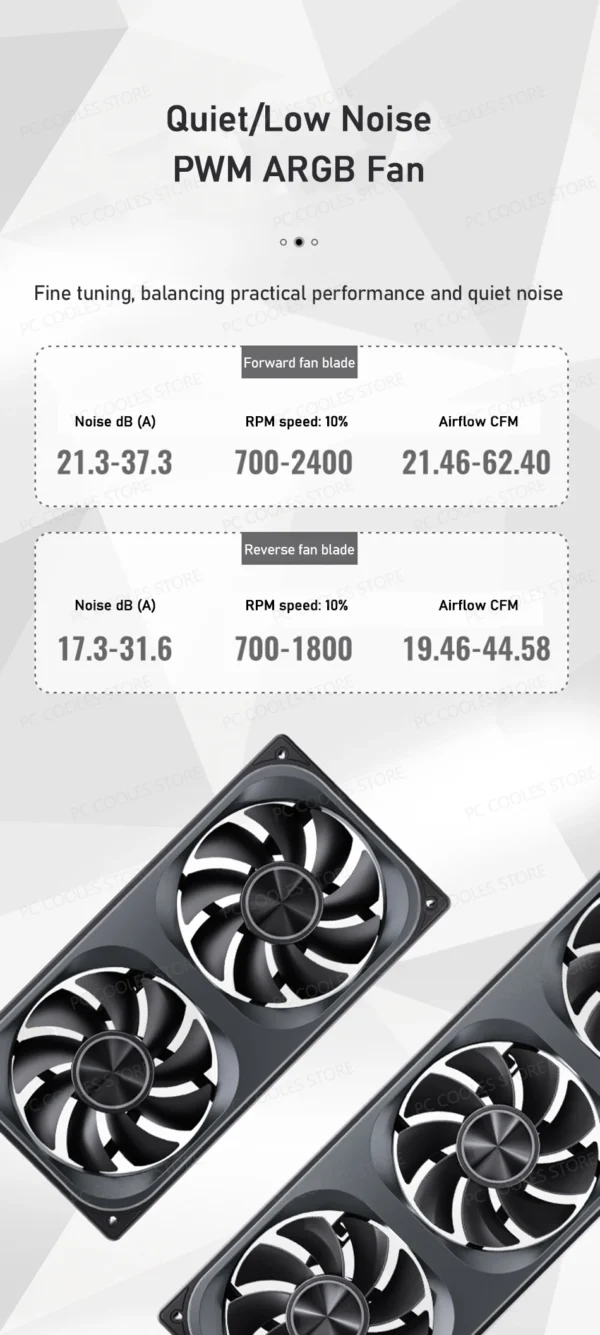

Airflow volume: 21.46-62.40 CFM
Wind pressure: 0.49-2.46 mmH2O
Noise level: 21.3-37.3 dB (A)
Rated voltage: FAN DC12V LED 5V
Rated current: FAN 0.22A LED 0.71A
Power: FAN 2.64W LED 3.55W
MTTF：≥ 20000h Room Temp: 25 ℃

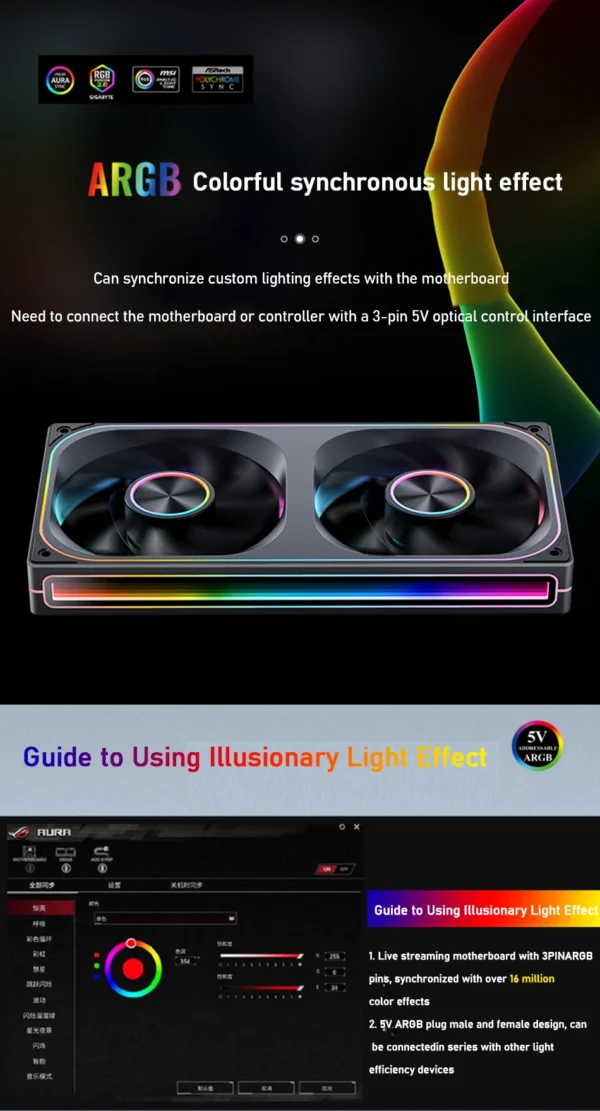

Connector: PWM 4PIN ARGB 3PIN
Number of LED beads: 32 around+9 parallel axis

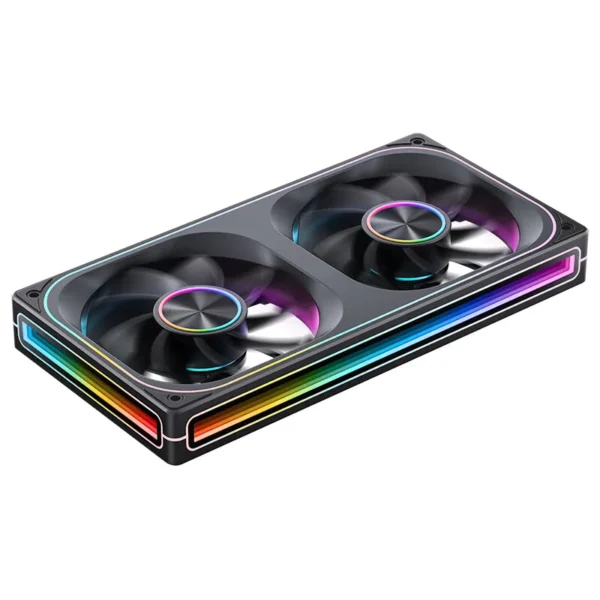

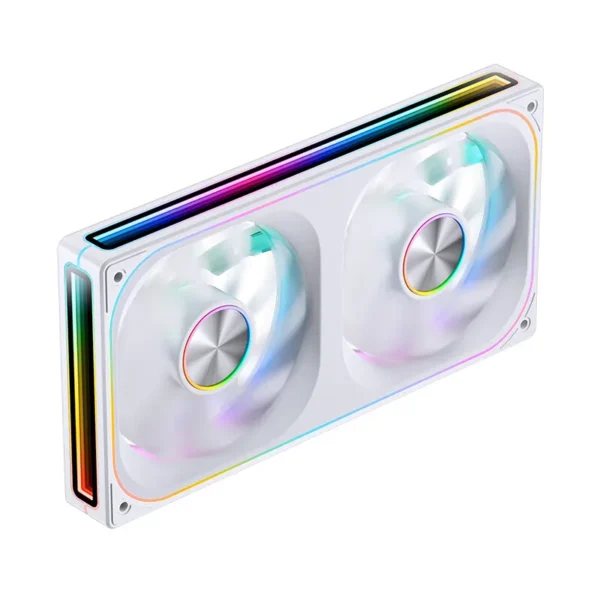

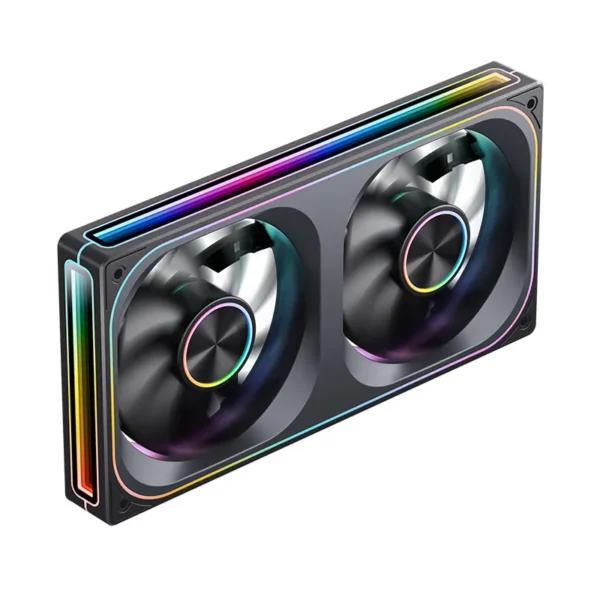

ZA-240

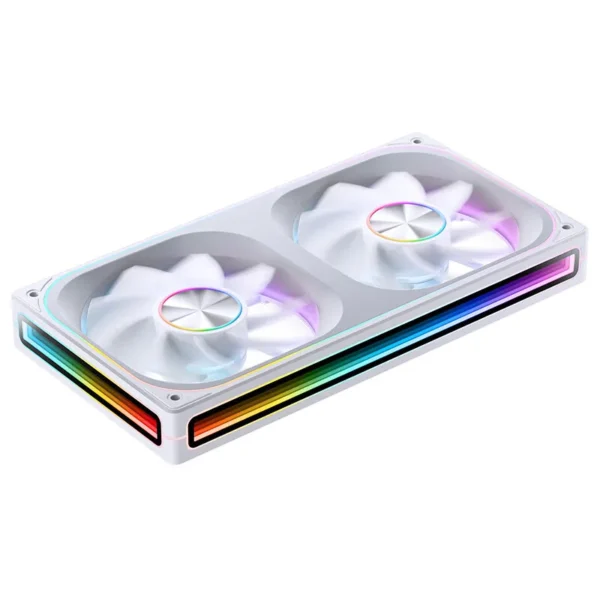

Model: ZA-240B Black and White/Forward and Reverse
Fan size: 242mm (L) * 123mm (W) * 28mm (H)
Speed: 700-2400rpm (± 10%)
Airflow volume: 21.46-62.40 CFM
Wind pressure: 0.49-2.46 mmH2O
Noise level: 21.3-37.3 dB (A)
Rated voltage: FAN DC12V LED 5V
Rated current: FAN 0.43A LED 1.16A
Power: FAN 5.16W LED 5.80W
MTTF：≥ 20000h Room Temp: 25 ℃
Connector: PWM 4PIN ARGB 3PIN
Number of LED beads: 52 around+18 parallel axis

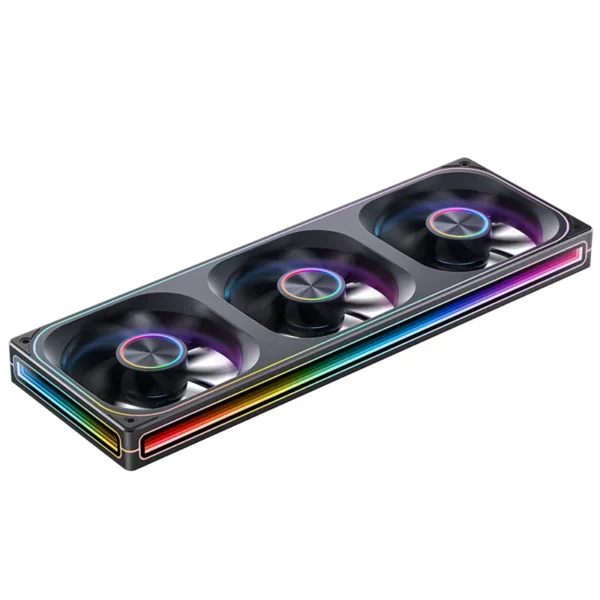

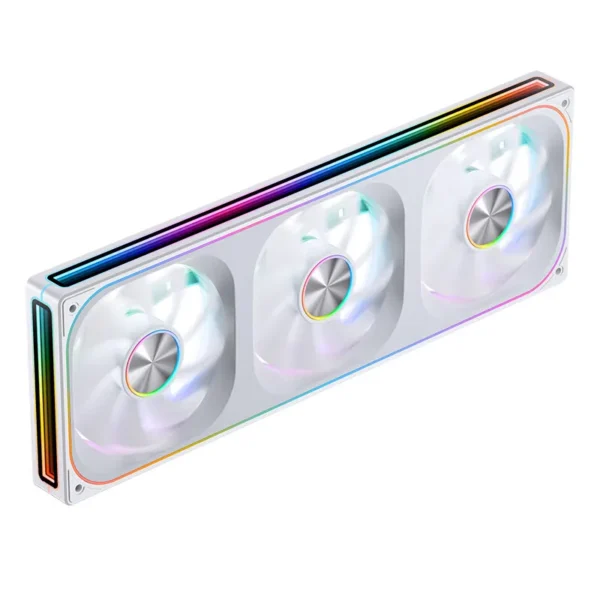

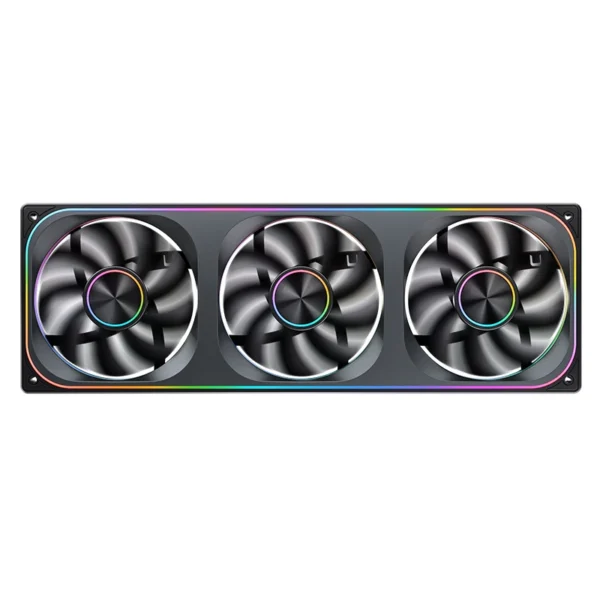

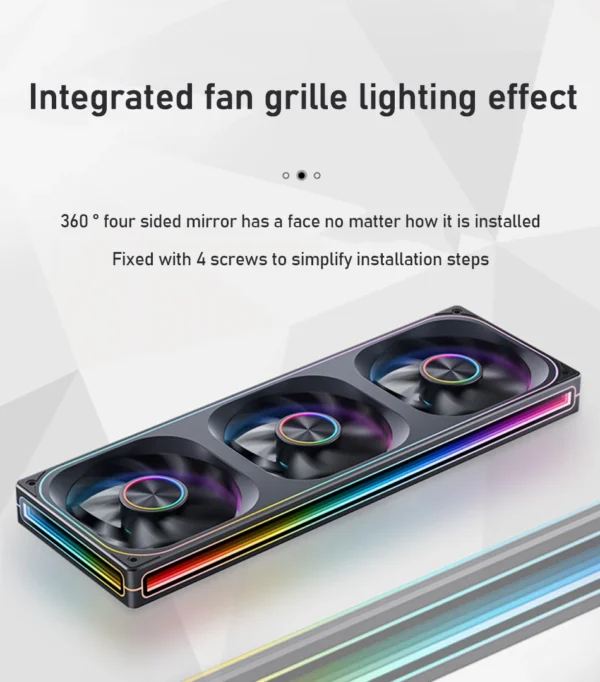

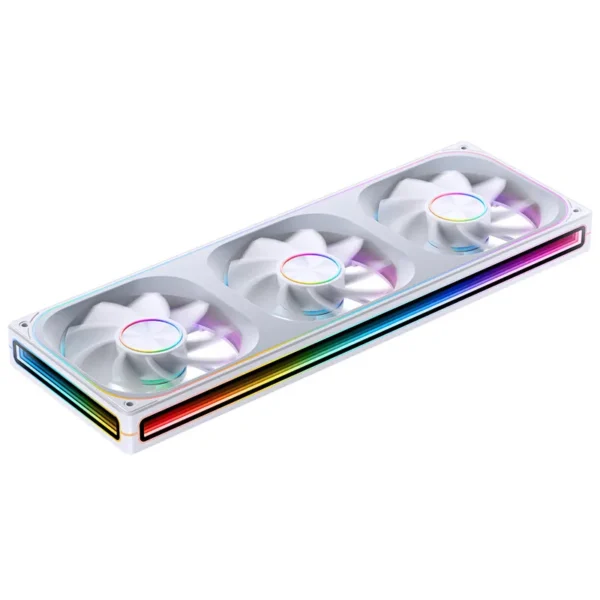

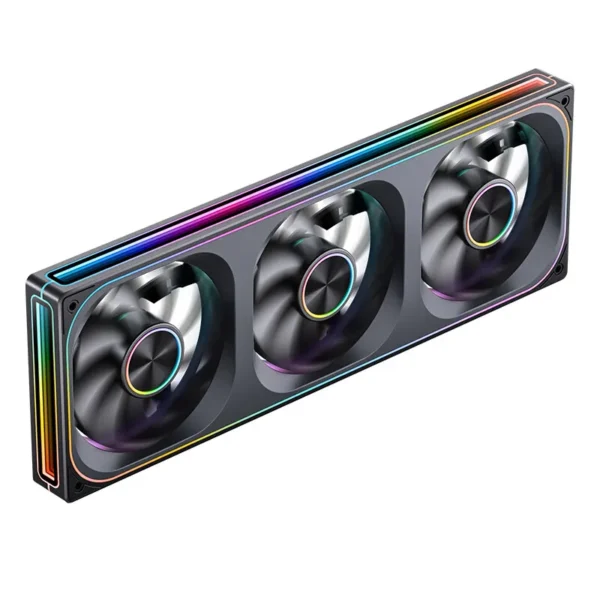

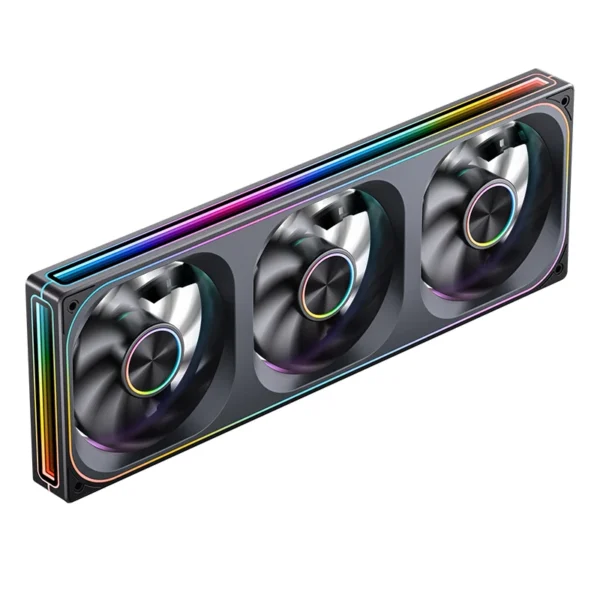

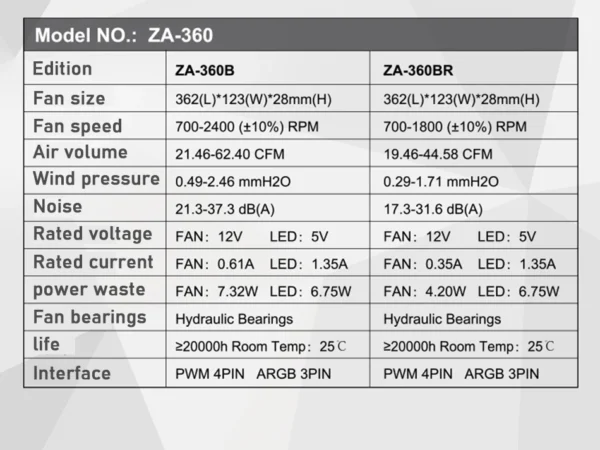

ZA-360
Model: ZA-360B Black and White/Forward and Reverse
Fan size: 362mm (L) * 123mm (W) * 28mm (H)
Speed: 700-2400rpm (± 10%)
Airflow volume: 21.46-62.40 CFM
Wind pressure: 0.49-2.46 mmH2O
Noise level: 21.3-37.3 dB (A)
Rated voltage: FAN DC12V LED 5V
Rated current: FAN 0.61A LED 1.35A
Power: FAN 7.32W LED 6.75W
MTTF：≥ 20000h Room Temp: 25 ℃
Connector: PWM 4PIN ARGB 3PIN
Number of LED beads: 68 around+27 parallel axis
Attention: The ZA/ZB-360 fan requires your motherboard or controller to support at least 68 light bead (some motherboards support adjusting the number of light bead)
