SPECIFICATIONS
Air Volume: 65
Bearing: Fluid Bearing
Blade Quantity: 9
Brand Name: Jonsbo
Choice: yes
Fan Life: 50000 hrs
Fan Size: 120 MM
Fan Speed: 700 – 2400
High-concerned chemical: None
Lines: 4 LINES
Model Number: ZB-120/240/360
Noise: 23dBA
Origin: Mainland China
Package: Yes
Power (W): 2.4
Power Interface: 5v-3pin ARGB
Series: ZB-120/240/360
Used For: Case,Radiator
Voltage: 12V
semi_Choice: yes

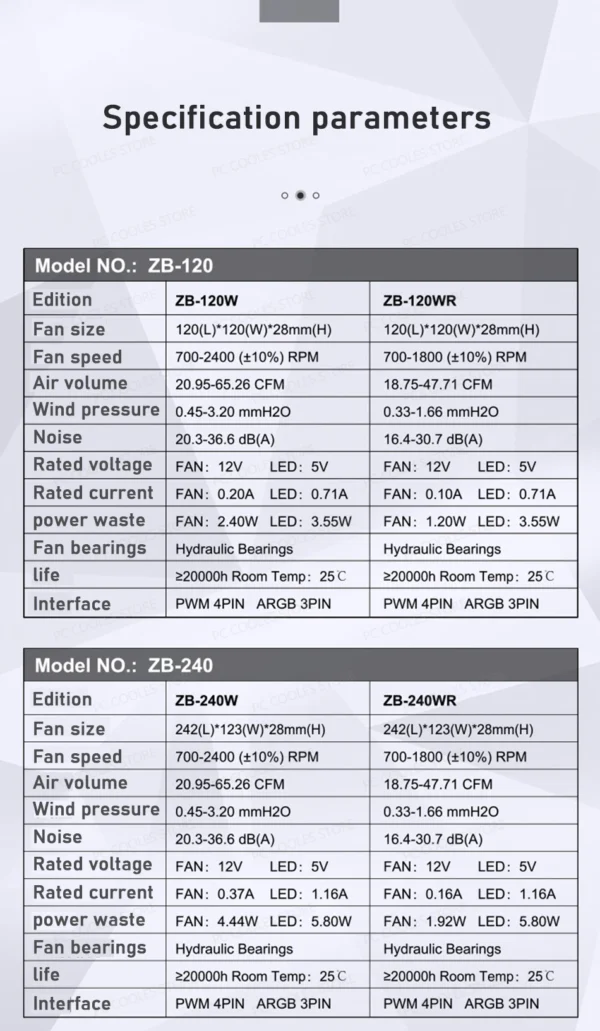

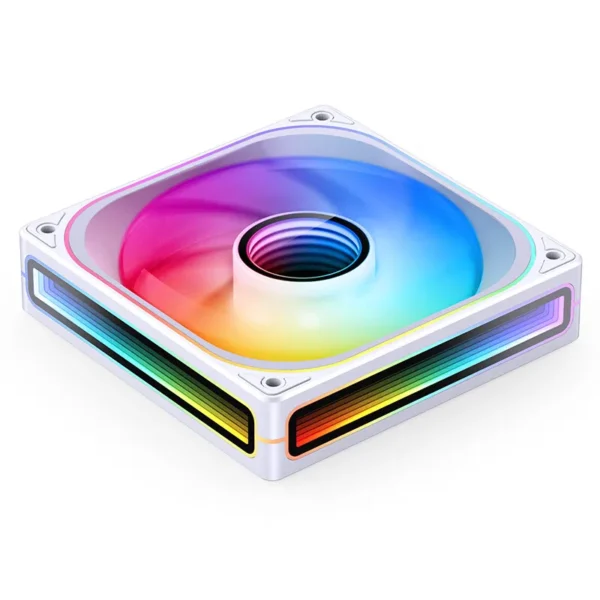

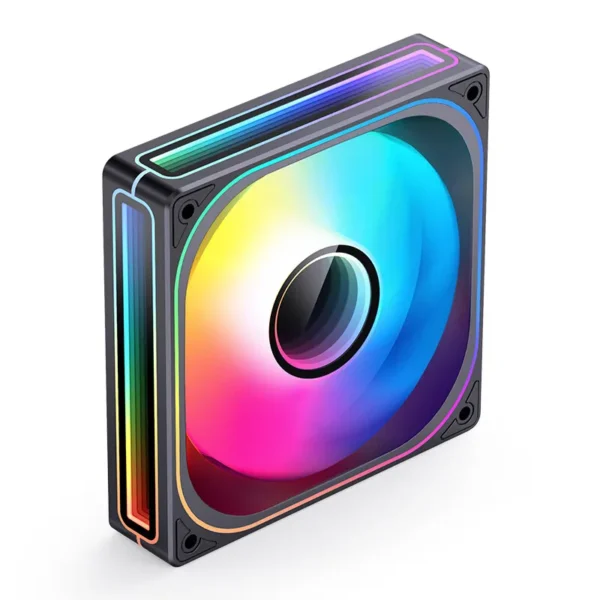

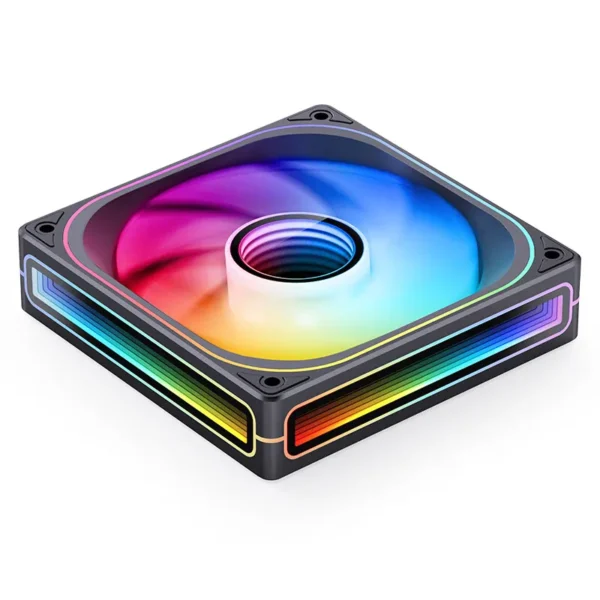

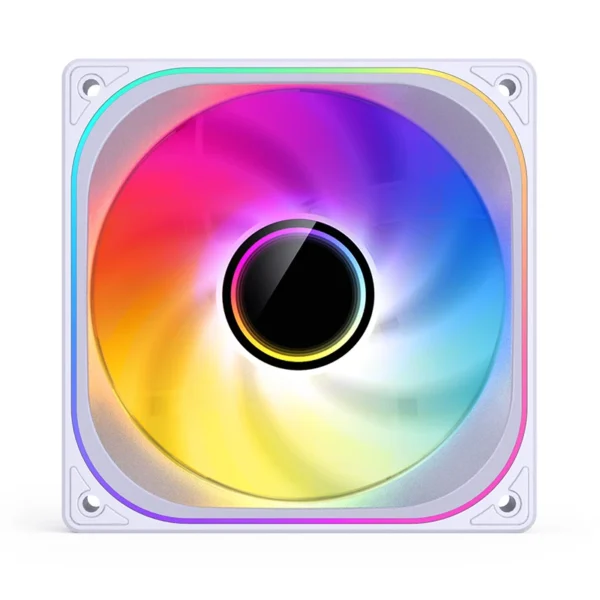

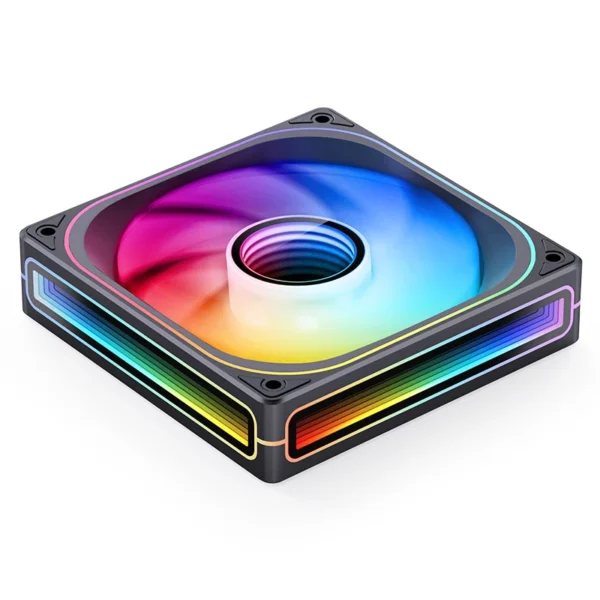

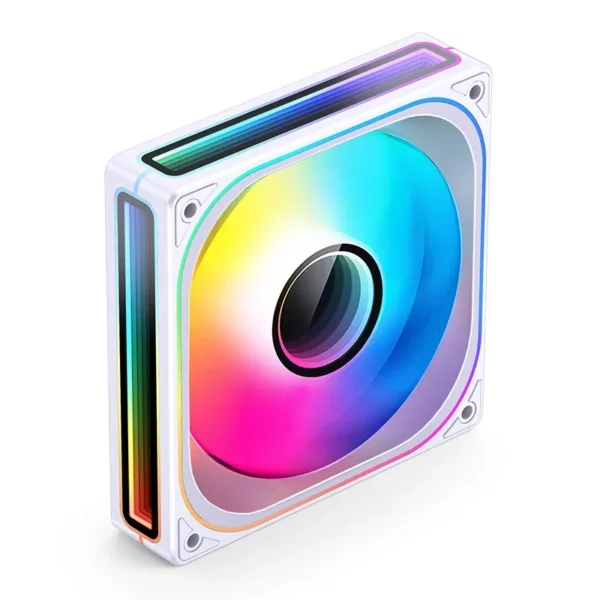

ZB-120

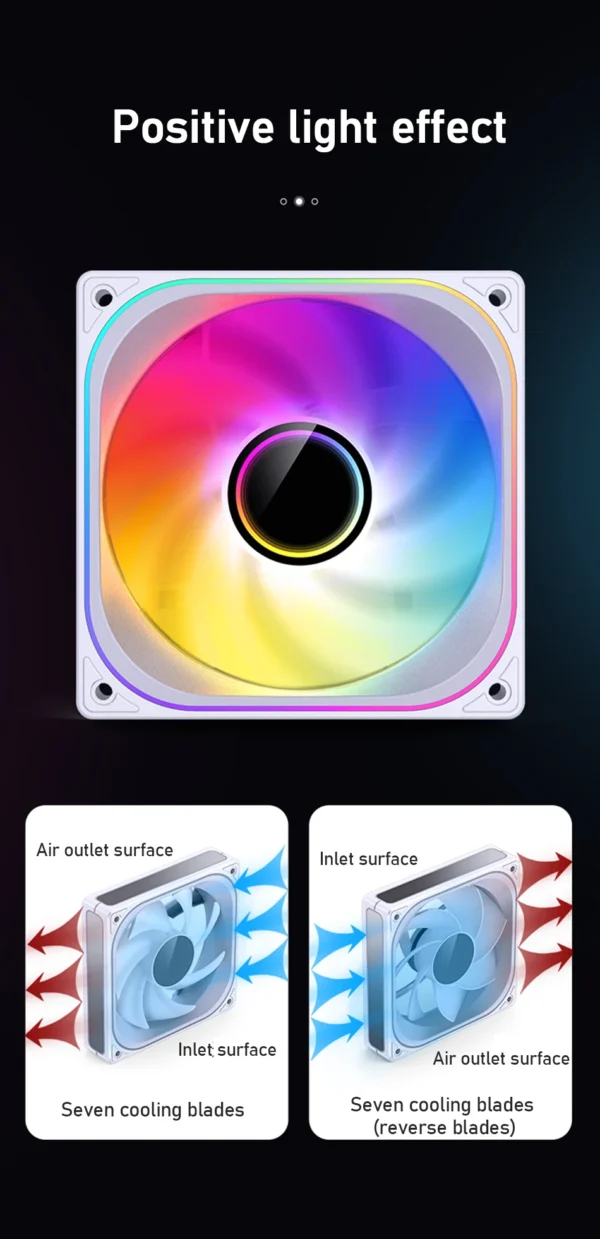

Model: ZB-120B Black and White/Forward and Reverse
Fan size: 120mm (L) * 120mm (W) * 28mm (H)
Speed: 700-2400rpm (± 10%)
Airflow volume: 20.95-65.26 CFM
Wind pressure: 0.45-3.20 mmH2O
Noise level: 20.3-36.6 dB (A)
Rated voltage: FAN DC12V LED 5V
Rated current: FAN 0.20A LED 0.71A
Power: FAN 2.40W LED 3.55W
MTTF：≥ 20000h Room Temp: 25 ℃

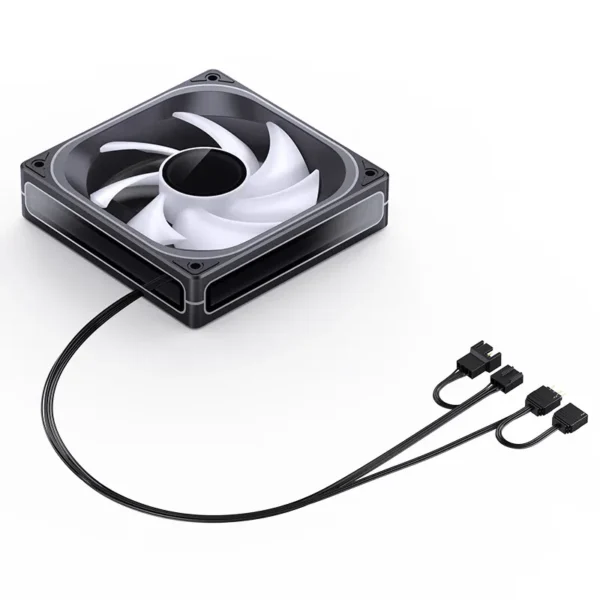

Connector: PWM 4PIN ARGB 3PIN
Number of LED beads: 32 around+9 parallel axis

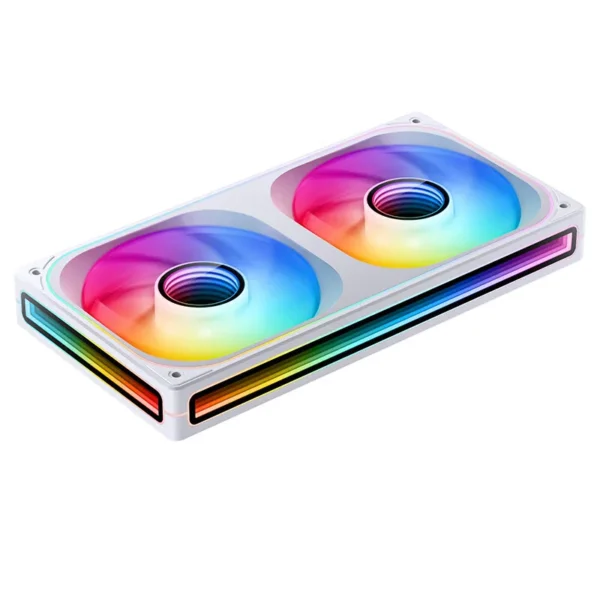

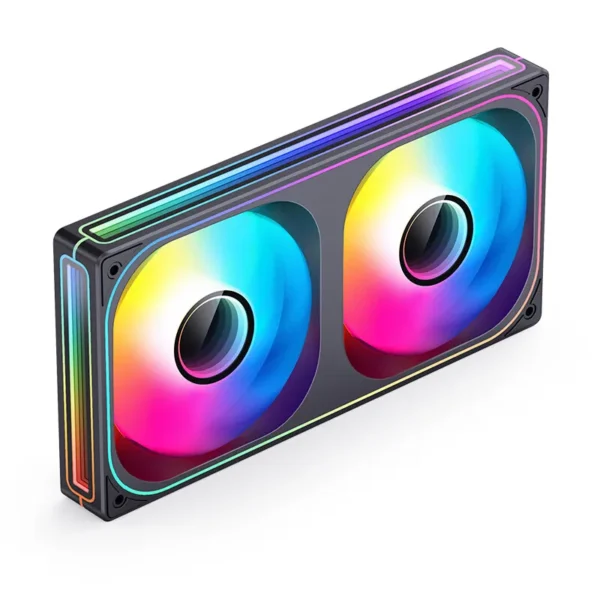

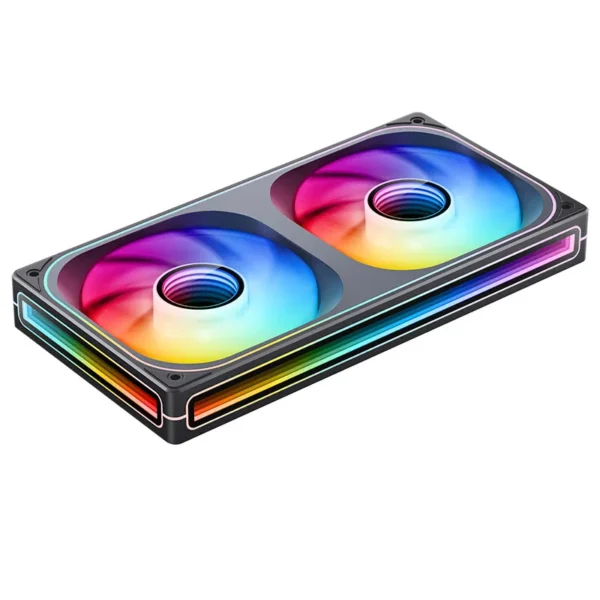

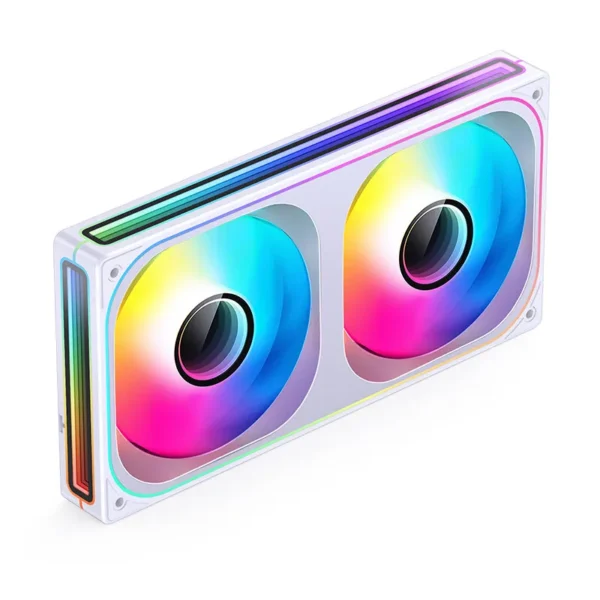

ZB-240
Model: ZB-240B Black and White/Forward and Reverse
Fan size: 242mm (L) * 123mm (W) * 28mm (H)
Speed: 700-2400rpm (± 10%)
Airflow volume: 20.95-65.26 CFM
Wind pressure: 0.45-3.20 mmH2O
Noise level: 20.3-36.6 dB (A)
Rated voltage: FAN DC12V LED 5V
Rated current: FAN 0.37A LED 1.16A
Power: FAN 4.44W LED 5.80W
MTTF：≥ 20000h Room Temp: 25 ℃
Connector: PWM 4PIN ARGB 3PIN
Number of LED beads: 52 around+18 parallel axis

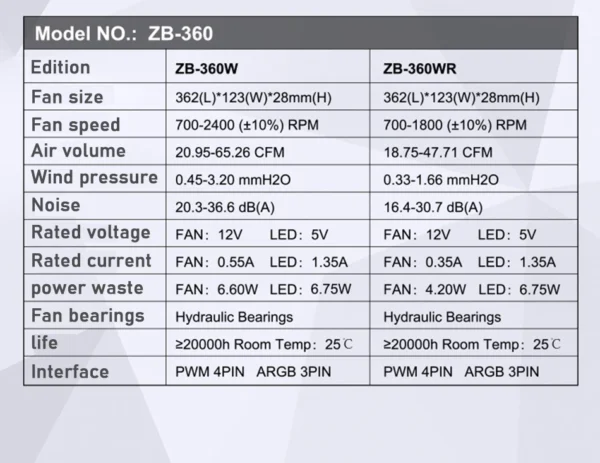

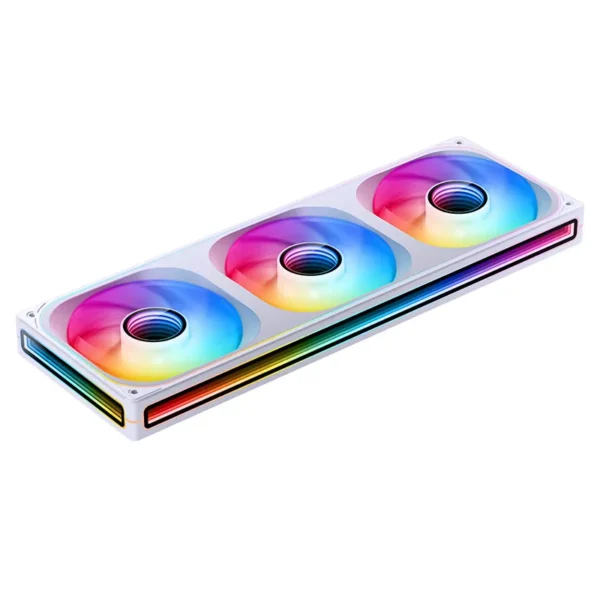

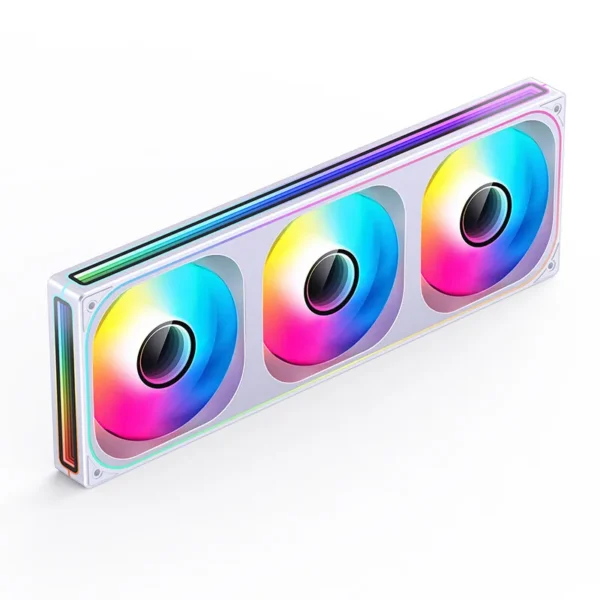

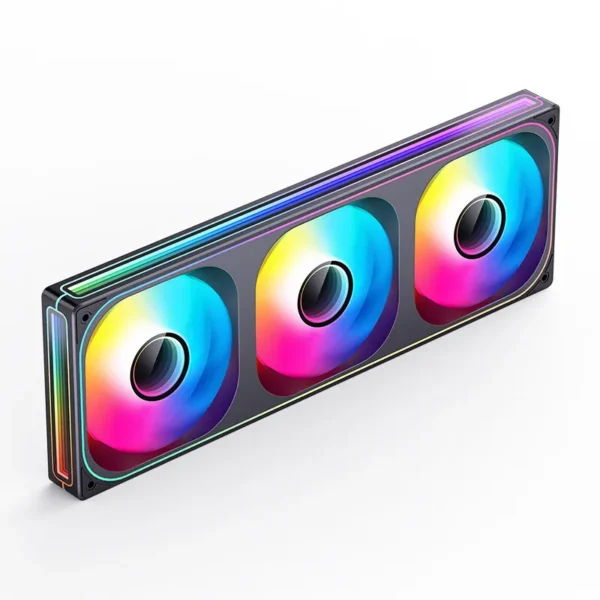

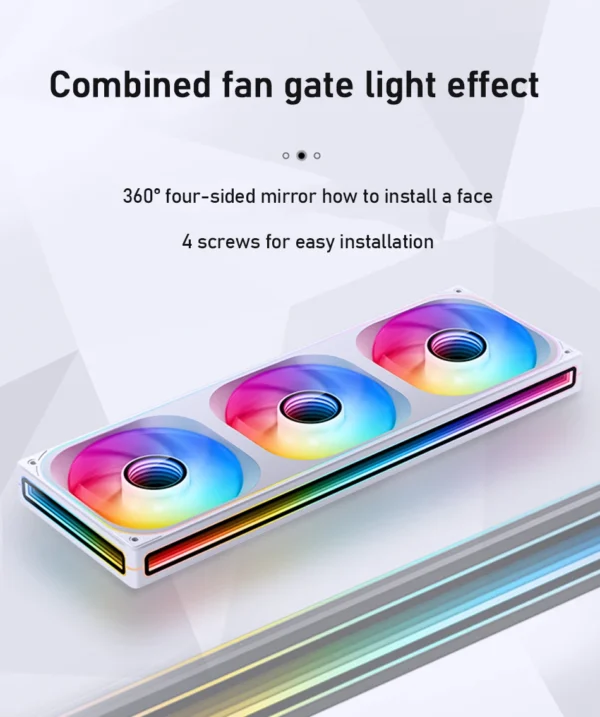

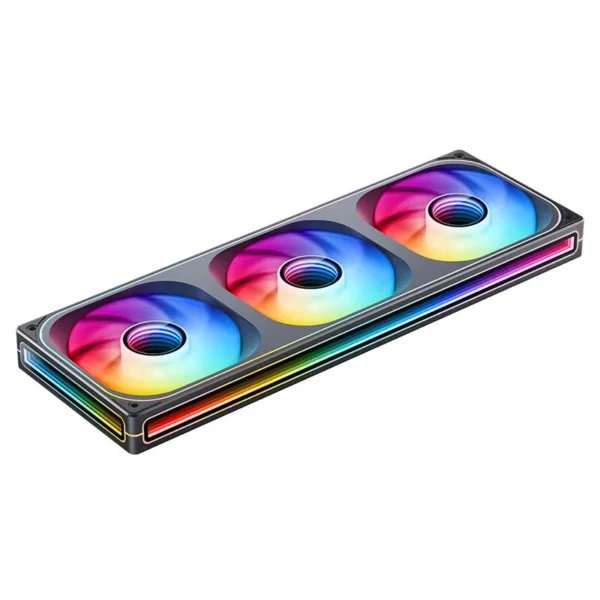

ZB-360
Model: ZB-360B Black and White/Forward and Reverse
Fan size: 362mm (L) * 123mm (W) * 28mm (H)
Speed: 700-2400rpm (± 10%)
Airflow volume: 20.95-65.26 CFM
Wind pressure: 0.45-3.20 mmH2O
Noise level: 20.3-36.6 dB (A)
Rated voltage: FAN DC12V LED 5V
Rated current: FAN 0.55A LED 1.35A
Power: FAN 6.60W LED 6.75W
MTTF：≥ 20000h Room Temp: 25 ℃

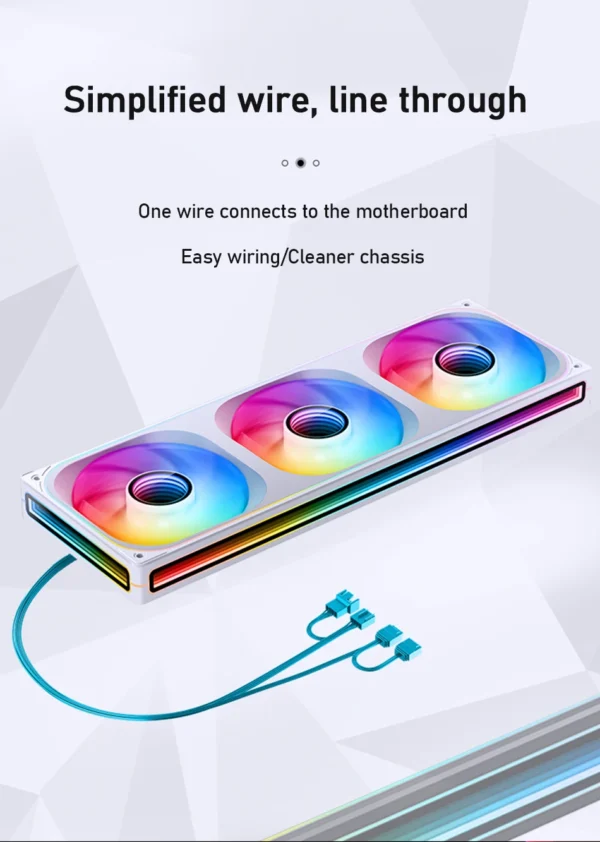

Connector: PWM 4PIN ARGB 3PIN
Attention: The ZA/ZB-360 fan requires your motherboard or controller to support at least 68 light bead (some motherboards support adjusting the number of light bead)
